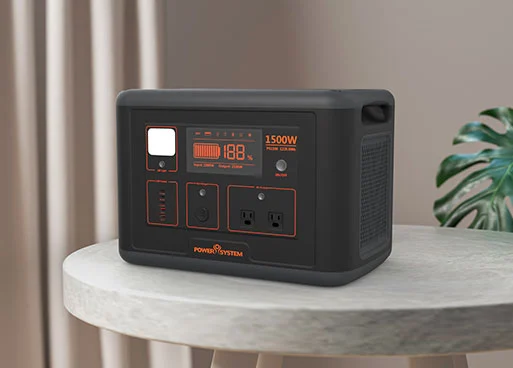

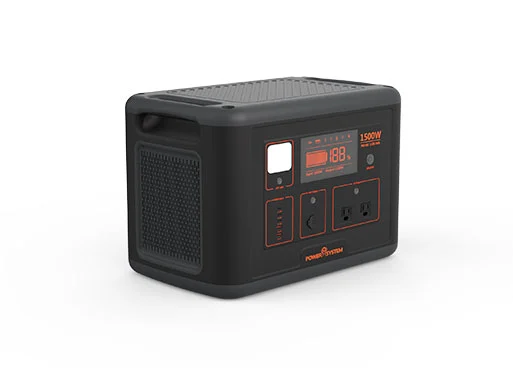

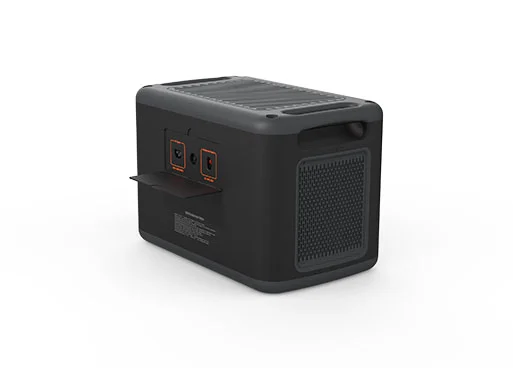

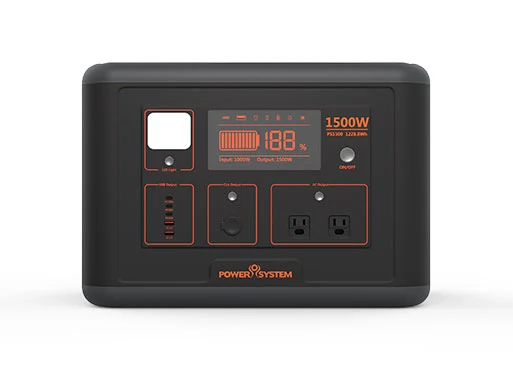

1500W Fast-Recharging Power Station

Specifications of 1500W Fast-Recharging Power Station

Model No.: PS-651/PS1500

Capacity: LiFePO4 Battery, 1228.8Wh (51.2V/24Ah)

Anderson Input: 12-48V=15A Max, 400W Max

AC Input (Recharging): 100-120V~60Hz, 1000W Max

AC Input (Bypass Mode): 100-120V~60Hz, 1500W Max

AC Rated Output (Inverter Mode): Pure sine wave 100-120V~15A Max/60Hz, 1500W (3000W Surge)

AC Rated Output (Bypass Mode): Pure sine wave 100-120V~15A Max/60Hz, 1500W Max

USB-C Output 1: PD 100W, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A

USB-C Output 2, 3: PD 60W, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=3A

USB-A Output 1, 2: QC 3.0 18W, 5V=3A, 9V=2A, 12V=1.5A

CLA Port Rated Output: 12V=10A, 120W Max

Operating Temperature: -20℃~60℃

Recharging Temperature: 0℃~45℃

Material: High Impact Polycarbonate (PC)

Size: L420*W240*H285mm

Time of charge and discharge

Discharging to 0% with 376W (USB-A1/A2: 18W each, DC: 120W, USB-C1: 100W, USB-C2/C3:  60W each) takes about 140 mins;

Discharging to 0% with AC 200~240V/1500W takes around 30 mins;

Recharging to 100% with Anderson 12-50V/15A (400W) takes around 4.5 hrs;

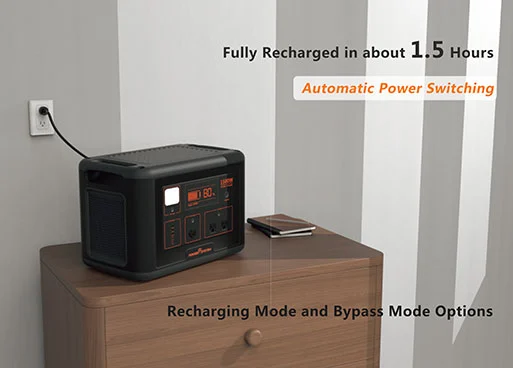

Recharging to 100% with AC 200~240V/10A max takes around 1.5 hrs.

This product supports pass-through charging.
